Double girder bridge crane

Max Capacity: 32ton
Lifting height: On your request
Span: On your request.
Every details will be customized.
Quantity:
  • LH
  • Dowell
  • LH
  • 10-40m/min
  • 0-70m/min
  • A3-A7
  • 3 Phase 380V 50hz
  • Optional
  • 0-40m/min
未标题-2 Basic Description



double-girder-overhead-crane


LH Double girder overhead crane with hoist 1-32ton is a kinds light and middle duty crane. The lifting mechanism is electric hoist. It designed according FEM (European) Standard which removed the transmit parts and reduced the dead weight.



▶Double girder bridge crane is composed of the bridge frame, lifting mechanism, running mechanism  and control room.
It is a heavy duty type  overhead crane  that satisfy frequently using, and Suitable for any environment;
Widely applied to loading and transporting the loads over 5T in the fixed crossing space and also can work with various special-purpose cranes in special operations;

Application: The Overhead Crane are widely used for Hydro Power Station, Power Plant, Steel Mills, Paper Mill, Storge and each kinds Factory Workshop;
▶In many instances the cost of a bridge crane can be largely offset with savings from not renting mobile cranes in the construction of a facility that uses a lot of heavy process equipment.

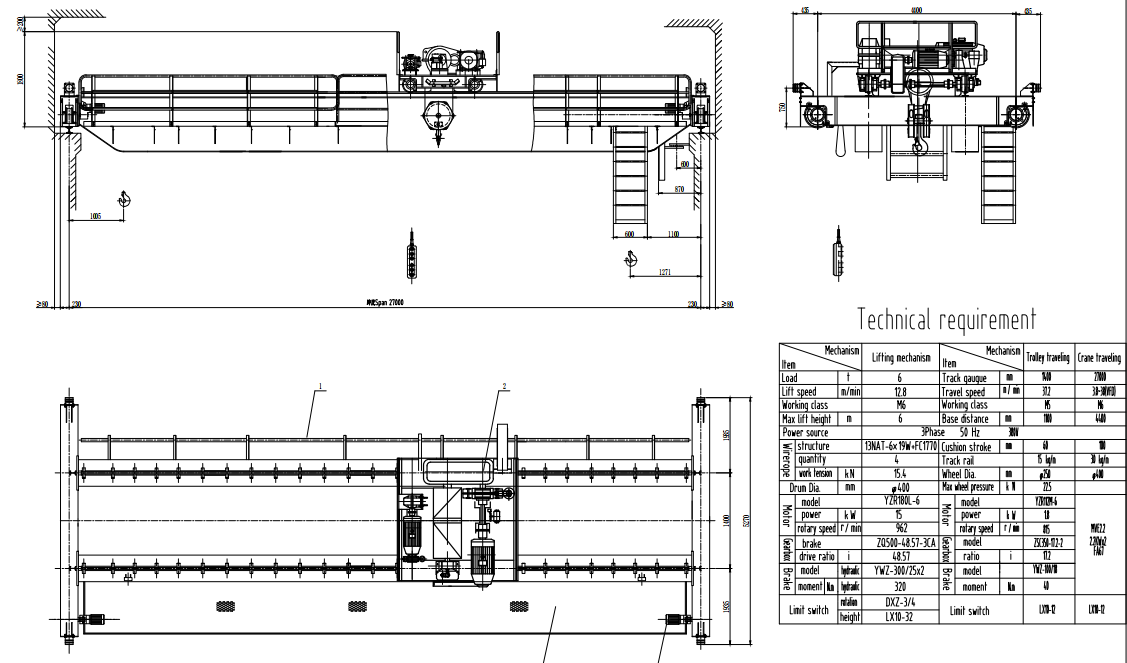

未标题-2 Schematic drawing


中式双梁桥机QD

  Why choose us ? ? ?  333333


未标题-2Main features



1. The bridge frame adopts box type main beam and automatic submerged arc welding.
2. The car is electrically conductive and adopts a new conductive device for the I-beam steel cable, which is safe and reliable.
3. The lifting mechanism can also set up a second set of safety devices according to requirements. Increase reliability.
4. Standardization, serialization and generalization of components.
5. The operating room has a wide field of view, all the mechanisms are operated in the control room, and the work is comfortable and flexible.


未标题-2Double girder overhead crane details


Electrical Part: Safe touch line conductive rate is high, small pressure, sliding fast.

                         Electrical wiring box neat, orderly, easy to maintain and repair.

                        Trolley running power is supplied by flat cable, smooth and aesthetic.



Double girder bridge craneDouble girder bridge craneDouble girder bridge craneDouble girder bridge crane



                   Slide wire                                                                                                      Electrical Box



Common wearing parts, spare parts: contactor, rope guide, hook safety card, wire rope, fire stop limit switch, brake friction plate, wheel

Double girder bridge craneDouble girder bridge craneDouble girder bridge crane Double girder bridge crane

contactor                 rope guide                    hook safety card                           wire rope

Operation:Both ground control and cabin control



Double girder bridge craneDouble girder bridge craneDouble girder bridge crane



                 pendant control                               Remote control                                    Cabin control



未标题-2Safety devices



1.Weight overload protection device.
2.Top quality long time bearing polyurethane materials buffer.
3.Lifting limit switch and traveling limit switch.
4.Emergency stop system.
5.Zero voltage protection.
6.Phases protection device and so on.



未标题-2Our Service



1. We have a professional sales team,can privede u a quick and professional reply.
2.
Exclusive engineer support at any time, so we can design within 24 hours.
3. 2 year warranty for whole machines, providing all parts free of charge.
4. Low charge for continue maintenance when warranty is expired.
5. can produce the largest tonnage crane,just give us your demand.
6. We can provide free training to end-users, don't worry about the installation.



未标题-2 Inquiry notice ! ! !



If you want to inquire about our overhead craneplease confirm with us the details as below. Then we will quote you a suitable price more quickly.

1.  Lift capacity?
2. Span?
3. Lift height?
4. Power supply in your local?
5. Nearest port?
6. What kind of goods will this crane lift?

Inquiry notice未标题-2inquire



未标题-1_01未标题-1_02未标题-1_03

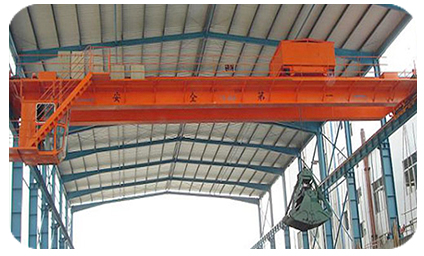

                       QD                                              DE                                             YZ

未标题-1_04未标题-1_05

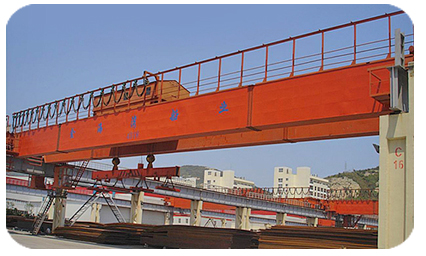

                                  QZ                                                                      QC




lifting weight t 3 5 10 16 20
Operational form
air operated/ floor operated
span m 10.5-31.5
speed hoisting mimin 8、8/0.8 8、8/0.8 7、7/0.7 3.5、3.5/0.35 6、6/0.6
traversing 20 20 20 20 20
travelling surface 20(30) 20(30) 20(30) 20(30) 20
cabin 20(30) 20(30) 20(30) 20(30) 20
electric hoist type CD1-3  MD1-3 CD1-5  MD1-6 CD1-10  MD1-10 CD1-16  MD1-16
lifting height m 6、9、12 6、9、12、18 9、12 9、12 9、12
working class
A3~A4 A3~A4 A3~A4 A3~A4 A3~A4
power source
50HZ  380V
