Basic Description

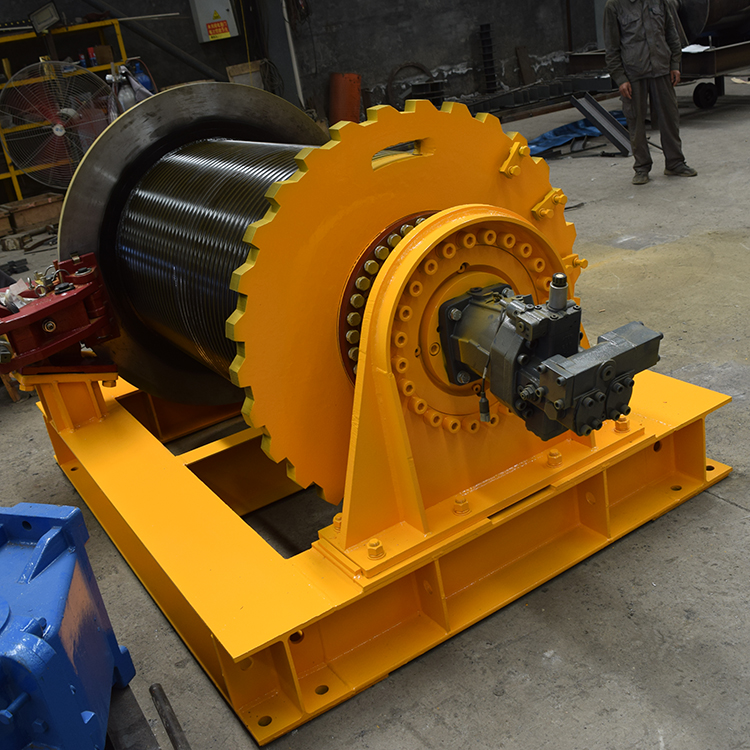

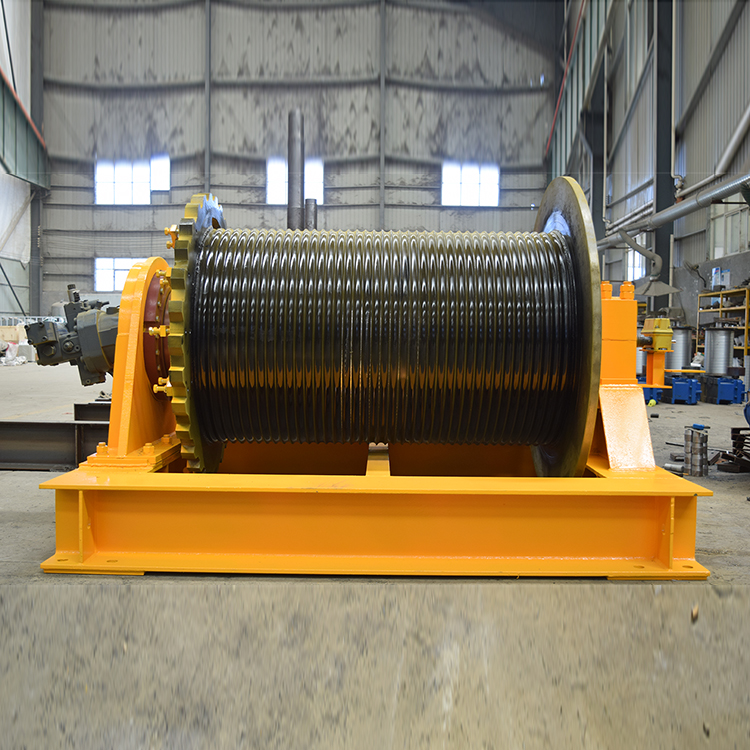

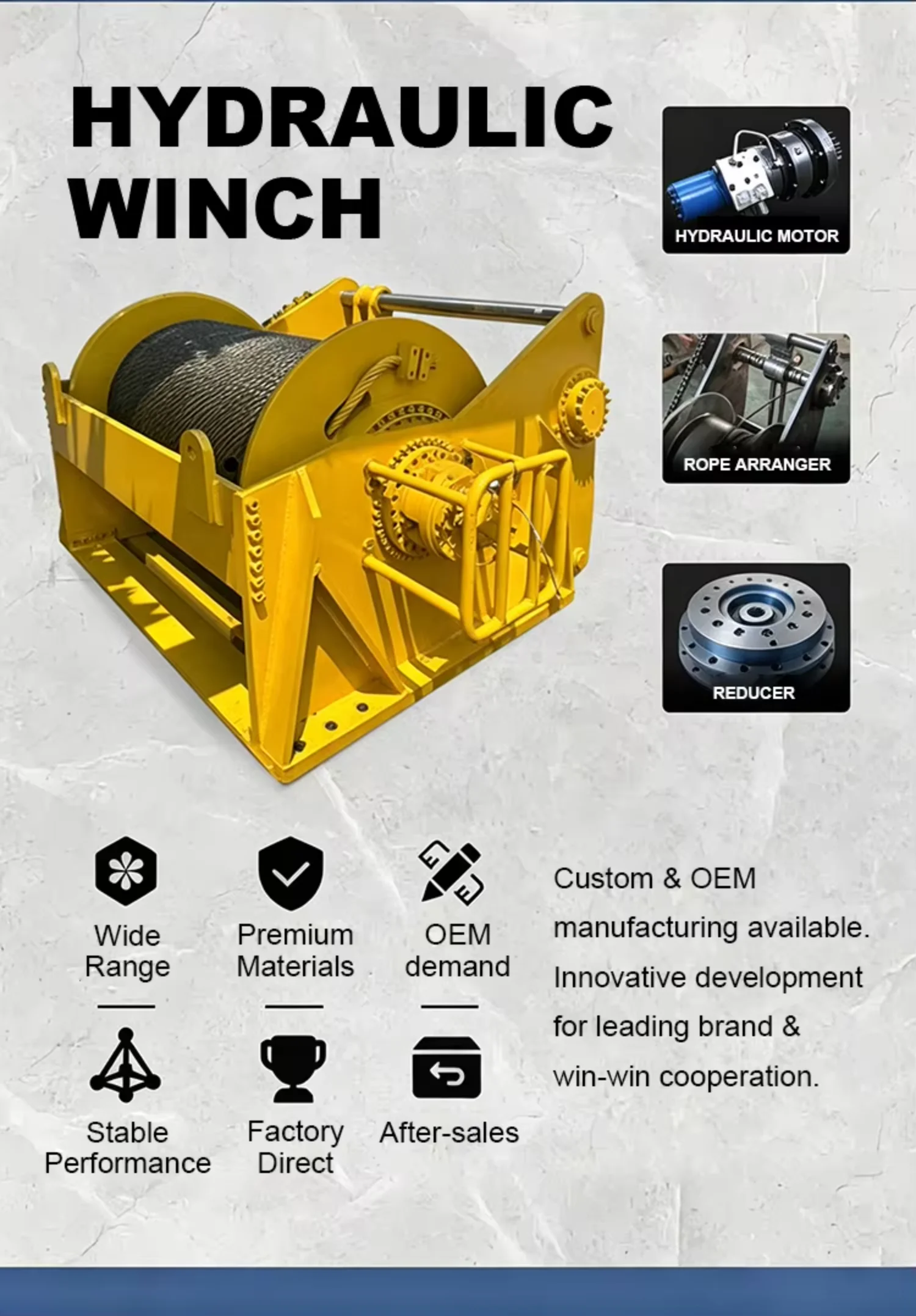

Our hydraulic winch is a heavy-duty, high-efficiency industrial lifting and pulling equipment independently developed and produced by the factory. Covering a load capacity of 0.5Ton-100Ton, it supports customized single-drum and double-drum designs, perfectly adapting to complex working conditions such as vertical lifting, horizontal traction, and self-rescue operations. Adopting integrated hydraulic drive structure and international standard core components, the winch features stable operation, strong overload resistance, low energy consumption and long service life. It is widely recognized by global customers and exported to Europe, America, Southeast Asia, the Middle East and other regions, being the preferred power auxiliary equipment for engineering, marine, mining and logistics industries.

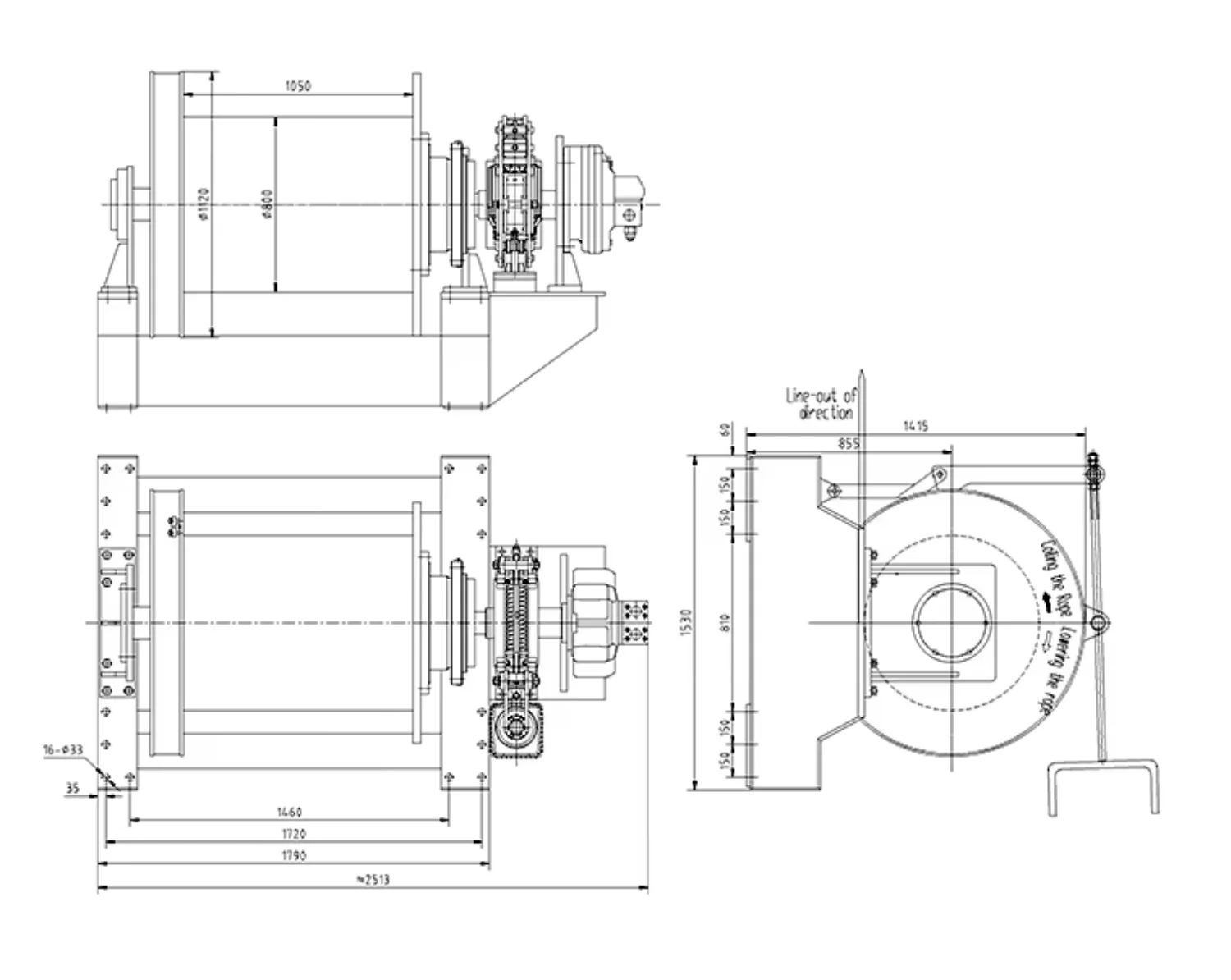

Schematic drawing
Main features* Compact Integrated Structure & High Stability: The hydraulic motor and transmission drive device are built inside the drum,
with only the valve block and flow limiter exposed externally. The overall structure is compact in axial size, small in
occupation and beautiful in appearance. The optimized integrated valve block simplifies the hydraulic pipeline system,
effectively reduces pipeline failure rates and greatly improves overall operational stability.
* High Efficiency & Energy Saving, Low Noise Operation: Equipped with high-precision reduction gear set and high-efficiency
hydraulic motor, the winch realizes fast start-up and stable transmission with high working efficiency. It runs smoothly
without impact, effectively reduces operating noise and energy consumption, meeting international environmental protection and
energy-saving standards, and adapting to long-term continuous duty work.
* Strict Safety Protection & Strong Durability: Built with high-grade integral steel structure and thickened drum, it resists
wear, corrosion and impact. Equipped with multi-protection devices including hydraulic self-locking, overload protection and
emergency stop function, it can realize stable braking under no-load, full-load and overload conditions to avoid slipping and
ensure construction safety. All key components have passed CE certification, meeting global industrial safety standards.
* Strong Adaptability & Custom Support: It supports customized parameters such as load capacity, rope capacity, lifting speed and
working pressure. It can be matched with cranes, excavators, ships, barges and various engineering machinery, adapting to harsh
working environments of -25℃ to 40℃. Multiple installation methods are optional to meet diverse customer on-site needs.
* Cost-Effective & Low Maintenance: The integrated structure reduces vulnerable parts, lowers daily maintenance difficulty and
cost. The factory direct sales model eliminates middlemen, providing high-quality industrial-grade equipment at a competitive
price with excellent economic benefits.
Electric winch models
Application
Our Service
Inquiry notice ! ! !
If you want to inquire about our elctric winch, please confirm with us the details as below. Then we will quote you a suitable price more quickly.
1. Lift capacity?
2. Lift height?
3. Fixed type or Trolley type?
4. Power supply in your local?
5. Nearest port?
6. What kind of goods will this crane lift?
