Truss Type Semi Travelling Gantry Cranes

cantilever length: 0-15m
Lifting speed: 5-15M/MIN
Trolley running speed: 20-40M/MIN
Working duty: A5-A7
Crane running speed: 30-50M/MIN
Quantity:
Inquire Add to Basket

  • BMG

  • Dowell

  • 0-15m

  • 5-15M/MIN

  • 20-40M/MIN

  • 30-50M/MIN

  • 3 phase 380V 50hz or request

  • cabin control/wire rope remote control

  • Engineers available to service machinery overseas

  • According to the customer request

Basic introduce

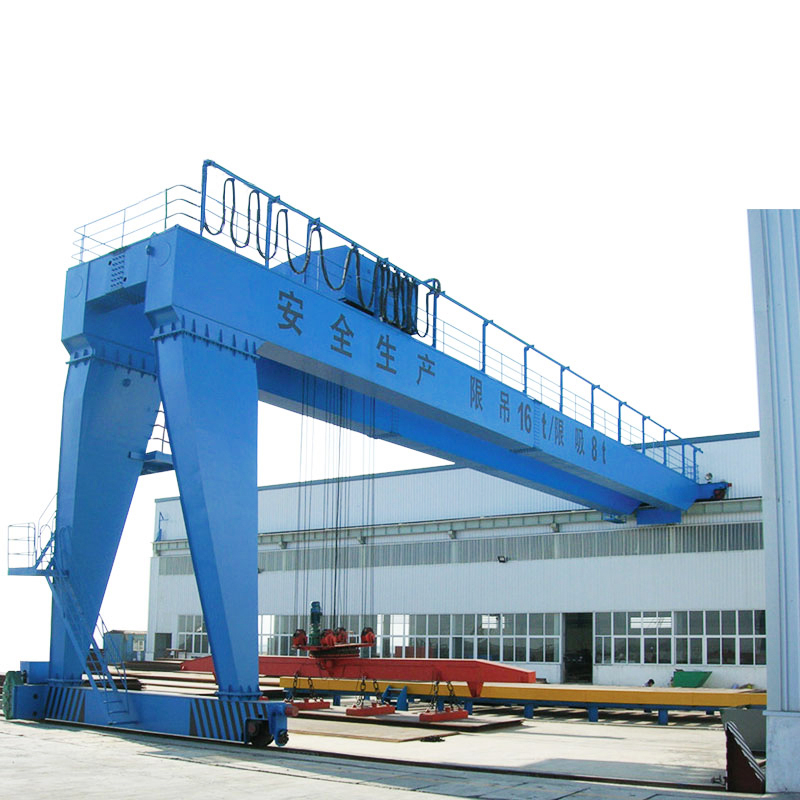

  BMH semi gantry crane is mainly composed by main beam, end beam, supporting legs, hoists and electric parts. Differ from double beam gantry crane, semi portable gantry crane only has one side of supporting legs, and the other side of main beam is placed on the tracks that are set on the workshop, which cab largely utilize space and reduce original costs. The height of MG semi gantry crane can be designed and adjusted with personal working specifications.

Features and Advantages
1. Semi gantry crane has lower investment than general gantry crane, which can also utilize resources at most.
2. Hengyuan semi gantry crane for sale adopts advanced design, which has stable performance and easy operation.
3. We offer professional purchase guidance, installation direction and one year warranty after purchasing.

Safety devices
·  Overload warning and limiter

· Lifting height limit device

· Voltage lower protection function

· Phase sequence protection function

· Emergency stop function

· Hooks with latch

· Rubber buffers


 Semi Gantry Crane Main Parts

BM 双梁 细节

Lifting Capacity (t) 10 16 20/10 32/10 36/16 50/10
Span (m) 18-35
Lifting Height (m) 10-13
Duty Class A5-A8
Speed
(m/min)		 Lifting 8.5 7.9 7.2/10.4 7.5/10.4 7.8/10.5 6/10.4
  Trolley 43.8 44.5 44.5 41.9 41.9 38.13
  Crane 40 38 38 40 40 38
Motor Lifting YZR180L-6/17 YZR225M-8/26 YZR225M-8/26
YZR200L-6/26		 YZR280S-10/42
YZR200L-6/26		 YZR280M-10/55
YZR225M-6/34		 YZR280M-10/55
YZR200L-6/26
  Trolley YZR132M1-
6/2.5*2		 YZR132M2-
6/4*2		 YZR132M2-
6/4*2		 YZR132M1-
6/4*2		 YZR132M1-
6/6.3*2		 YZR132M1-
6/6.3*2
  Crane YZR160L-6/13*2 YZR160L-6/13*2
YZR160M1-
6/6.3*4		 YZR160L-6/13*2
YZR160M2-
6/8.5*4		 YZR160M2-
6/8.5*4		 YZR160L-6/13*4
YZR160M2-
6/8.5*4		 YZR160L-6/13*4
Weight
(t)		 Trolley 9 9.5 12 16 18 24
  Total 63.2-100 78-106 79-120 95-108 106-155 195
Wheel Pressure (KN) 225-295 255-373 208-289 324-334 314-363 452
Steel Track 43kg/m 50kg/m
Power Source 3-phase A.C 380V 50HZ (As your demand)
