Travel Lift Yacht Crane

Model: MBH
Load capacity: 50-600ton
Span: 12-20m
Condition:New
Warranty:3 years
Control method: Cabin Control

Quantity:



Inquire Add to Basket

Model:
MBH
Brand:
DOWELL
Product Name:
Yacht Crane
Power supply::
3 phase 380V 50hz or request
Lifting speed:
5-15M/MIN
Trolley running speed:
20-40M/MIN
Working class:
A3-A6
Crane running speed:
30-50M/MIN
Control method:
cabin control/wire rope remote control
Protection grade:
Protection grade
Insulation grade:
F
Insulation grade:
Customer Requirements

Product Description

Basic Description

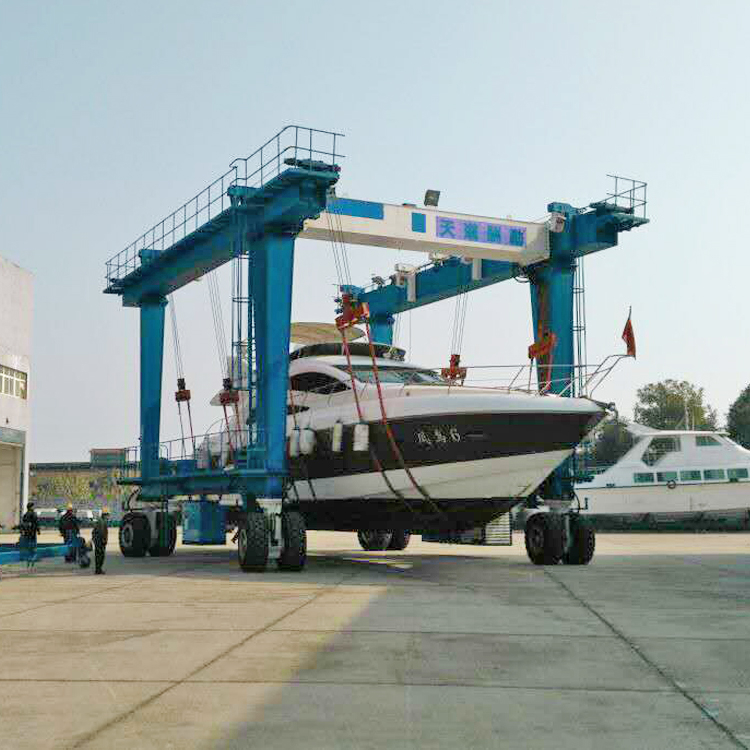

Boat crane includes the following items: main structure, traveling wheel block, lifting mechanism,steering mechanism, hydraulic transmission system, electric control system, the main structure for the "U"type, and it can transfer ships whose height exceeds its own height.
According to different requirements of our customers, the Boat Hoist Crane can handling different tons boat or yacht (10T-500T) from the shore side, it can be used for the maintenance on the shore side or can put the new boat inside the water. It adopts the soft and firm belt to lift the boat, yacht; it will never hurt the surface.
The crane also can put the boat in sequence quickly with small gap between each two boats.
Electrical system uses PLC frequency adjustment which can easily control every mechanism.
Control Methods: Cabin control / remote control or Cabin control + remote control.

Why choose us ? ? ?

Yacht Crane includes the following items:

---- Door frame
---- Lifting mechanism
---- Lifting point adjusting mechanism
---- Crane traveling mechanism
---- Crane steering mechanism
---- Electrical control system
---- Power and hydraulic system
---- Safety protection device etc.

Product Paramenters

SWL(Kg)	Span (m)	Lifting Height (m)	Crab Travel(m/min)	Lifting Speed (m/min)	Steering mode	Steering angle
5000+5000 (2m)	12/16/20	6/9	10/15/20m/min	8, 8/0.8 Standard Speed	Hydraulic-2 Hydraulic-4	0-20° 0-30° 0-90°
10000+10000 (2m)	12/16/20	6/9		7, 7/0.7 Standard Speed
20000+20000 (2m)	12/16/20	6/9		3.5, 3.5/0.35 Standard Speed
32000+32000 (1Am)	12/16/20	6/9		3.5, 3.5/0.35 Standard Speed
50000+50000 (1Am)	12/16/20	6/9		4 Standard Speed

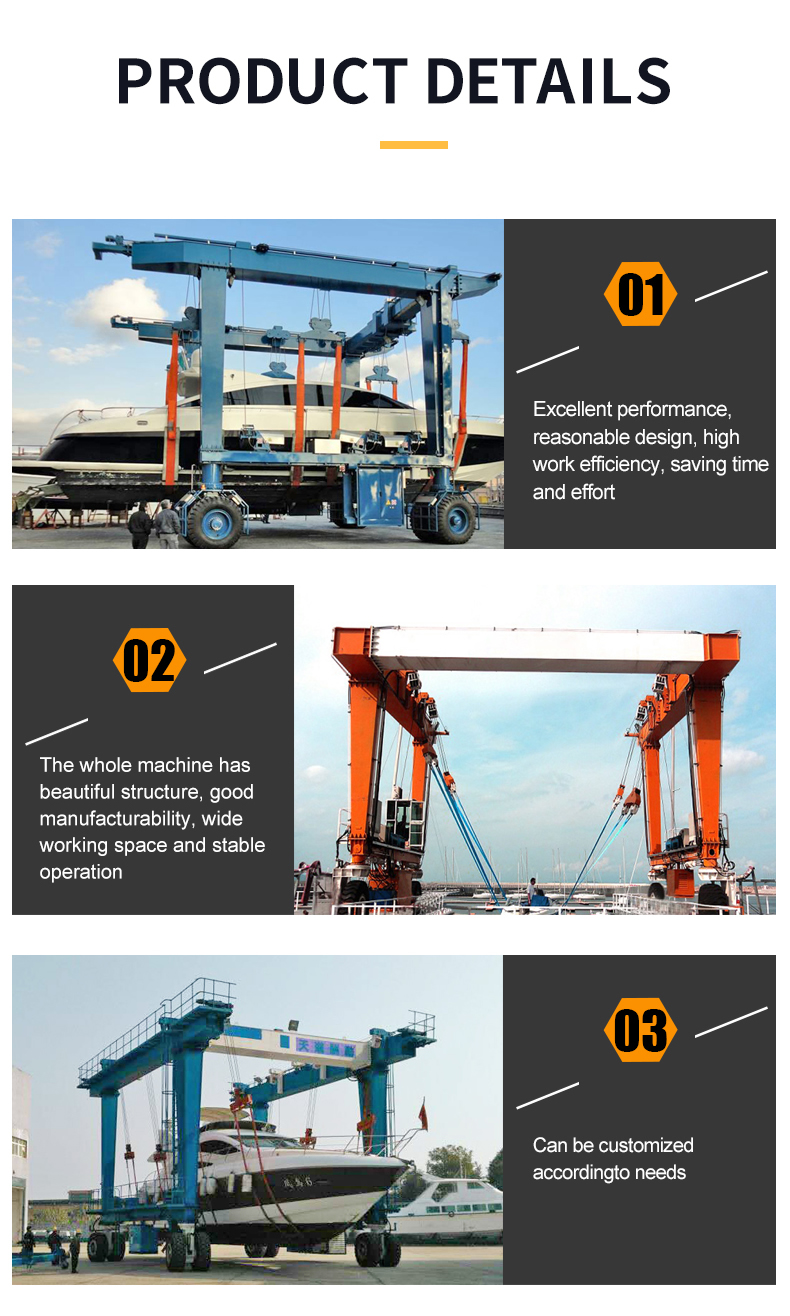

Prouduct show

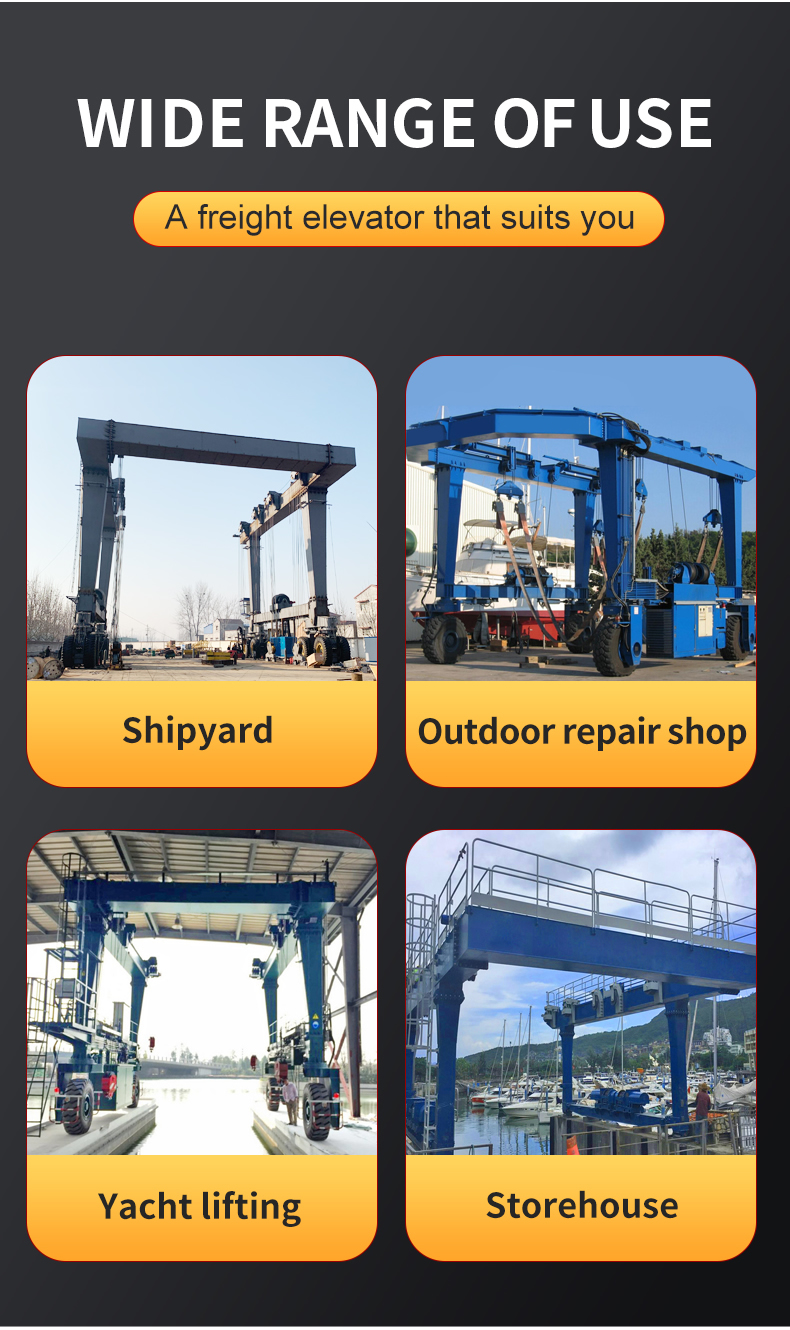

-Yacht crane application
游艇吊-详情_r3_c1

Our Service

1. We have a professional sales team,can privede u a quick and professional reply.
2. Exclusive engineer support at any time, so we can design within 24 hours.

3. 2 year warranty for whole machines, providing all parts free of charge.

4. Low charge for continue maintenance when warranty is expired.
5. can produce the largest tonnage crane,just give us your demand.
6. We can provide free training to end-users, don't worry about the installation.

Inquiry notice ! ! !

If you want to inquire about our yacht crane, please confirm with us the details as below. Then we will quote you a suitable price more quickly.

1. Lift capacity?
2. Span?
3. Lift height?
4. Power supply in your local?
5. Nearest port?
6. What kind of goods will this crane lift?
