Transporting girder vehicle for launcher grider crane

Rated load: 900000 kg (800000 kg)
wheelbase: 1800mm - 5000/1200 mm
Axis/suspension: 20 (18) / 40 (36)
Quantity:
  • Zh320

  • Dowell

  • 300t

  • 10t

  • 2years

  • No-load 0-20 km/h, full-load 0-5 km/h

  • DEUTZ 6110/180kw / 2700r/min

  • 110-20-18 / 1150kPa/ 32 pcs

  • CNHTC 90+ZH300+Fast 16D

  • (855 /710)cm×285cm×120cm

  • 32cm /135cm

  • 4% / 3%

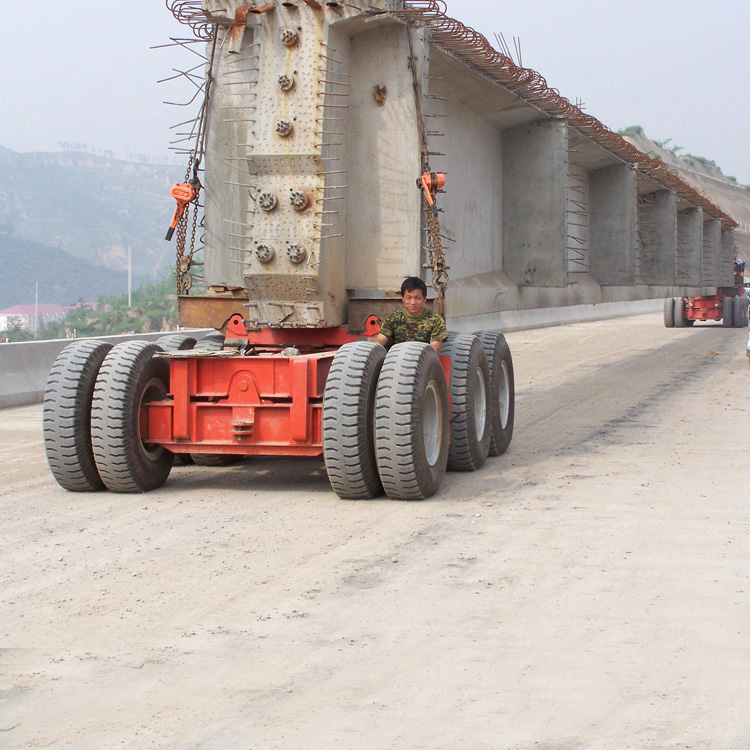

Transporting girder vehicle for launcher grider erection machine


                                 Transporting-girder-vehicle

ZH300-3 transporting girder vehicle for China Railway Electrification Group

ZH300-3 technical parameters

Load capacity / self weight

300T / 25.6T

Engine Type / Engine Power / Rated Speed

DEUTZ 6110/180kw / 2700r/min

Tyre type / Tyre Pressure / Tyre number

110-20-18 / 1150kPa/ 32 pcs

Wheel center distance / number of axle /wheel base /number of brake axle

220cm / 5×2=10 / 130cm +150cm+130cm+130cm / 3

Gearbox specification

CNHTC 90+ZH300+Fast 16D

Chasis clearance / Load distance from ground

32cm /135cm

Size (Driving vehicle/passive vehicle)

(855 /710)cm×285cm×120cm

running speed / steering angle / turning radius

3.5m/min-20km / h /30° / 4.5m (single body)

Gradeability (longitudinal / horizontal)

4% / 3%


Customer visiting on 12-2016

visit
