KBK light crane system

Model: KBK
Load capacity: 0.1-3t
Span: 2-10m
Control method: Pendent line or Radio control
Color:
Quantity:
  • kbk
  • Dowell
  • Eliectric Hoist
  • 3 Phase 380V 50hz
  • 2 Years
  • New
  • CE, ISO
  • Smooth traveling low noise
  • 0.8/5 M/min
  • 11 m/min
未标题-2 Basic Description

kbk crane system is a general term for flexible beam crane. KBK is composed of suspension device, track, turnout, trolley, electric hoist, mobile power supply device and control device. It can directly transport materials in the air by hanging on the roof or beam frame of the plant. KBK flexible composite suspension crane is characterized by that the main body of steel structure is composed of type rails, and different combinations can form a variety of use forms.
KBK Light Crane System includes KBK single beam crane, KBK double beam crane, KBK monorail suspension crane, KBK jib crane, etc. mainly equiped with chain hoist .

  Why choose us ? ? ?  333333


未标题-2Main features

1.Modular system design
2.Smooth and reliable handling
3.Improve labor efficiency
4.Cost-effective implementation
5.Customer-specific configuration to meet individual requirements



未标题-2 Product Paramenters
Item
Data
Capacity
0.5-3.2t
Span
0.7-12m
Lifting height
3-12m
lifting speed
single or double speed
travelling mode
manual or electric
Running speed
3.2-40m/mim
Working class
ISOA1-A6/FEM1AM-FEM2M
Power source
as your demands
Other
According to your specific usage, specific model and design will offer
KBK-详情_r4_c1
未标题-2Prouduct show

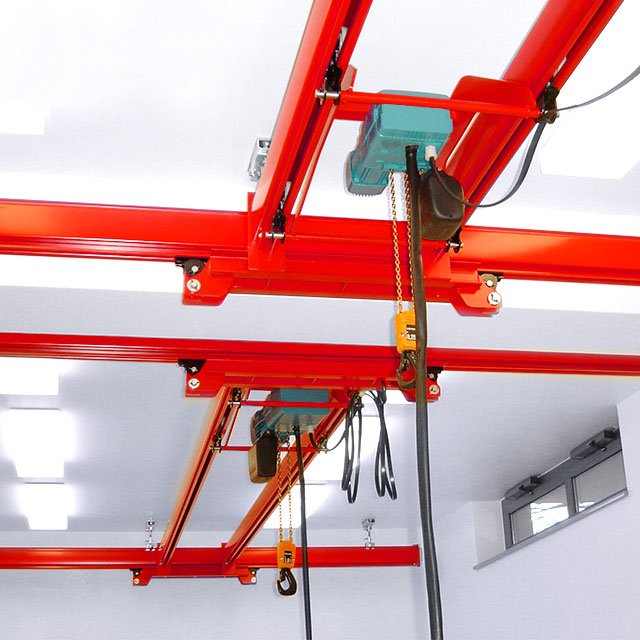

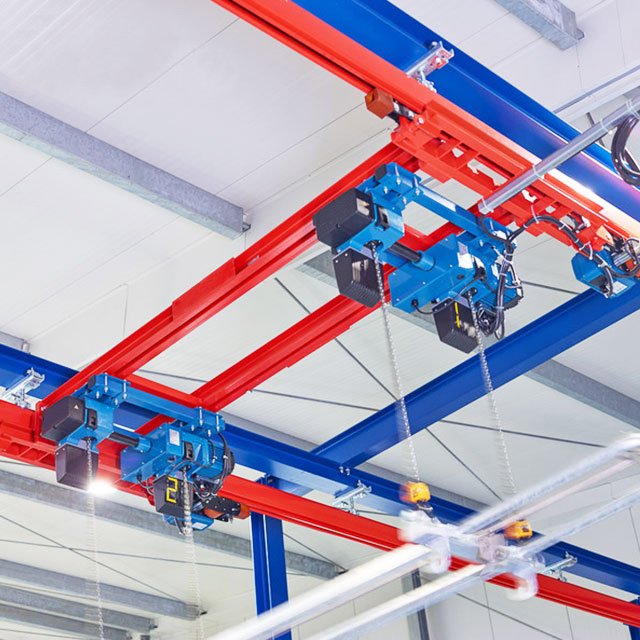

-KBK light type flexible crane
-KBK light type rigid rail crane

未标题-2Our Service



1. We have a professional sales team,can privede u a quick and professional reply.
2.
Exclusive engineer support at any time, so we can design within 24 hours.
3. 2 year warranty for whole machines, providing all parts free of charge.
4. Low charge for continue maintenance when warranty is expired.
5. can produce the largest tonnage crane,just give us your demand.
6. We can provide free training to end-users, don't worry about the installation.



未标题-2 Inquiry notice ! ! !



If you want to inquire about our kbk craneplease confirm with us the details as below. Then we will quote you a suitable price more quickly.

1.  Lift capacity?
2. Span?
3. Lift height?
4. Power supply in your local?
5. Nearest port?
6. What kind of goods will this crane lift?
