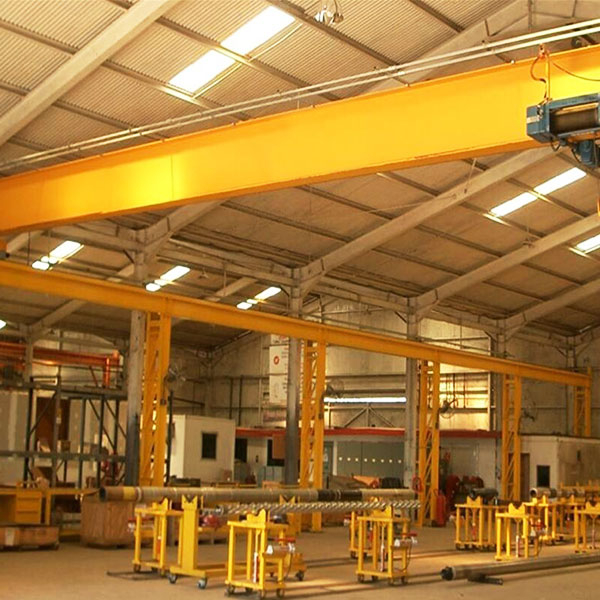

Industrial working Single girder overhead bridge crane

load: 1-32t
max lifting height: 30m
span: 10.5-31.5m
working class: A3-A5
Quantity:
  • LDE
  • Dowell
  • 1-32tons
  • 7.5~31.5m
  • 3-30m
  • 3.5m/min or double speed
  • 20/30 m/min or 0-30m/min
  • A3~A5
  • 380v 50hz or on your request
  • According to the customer request

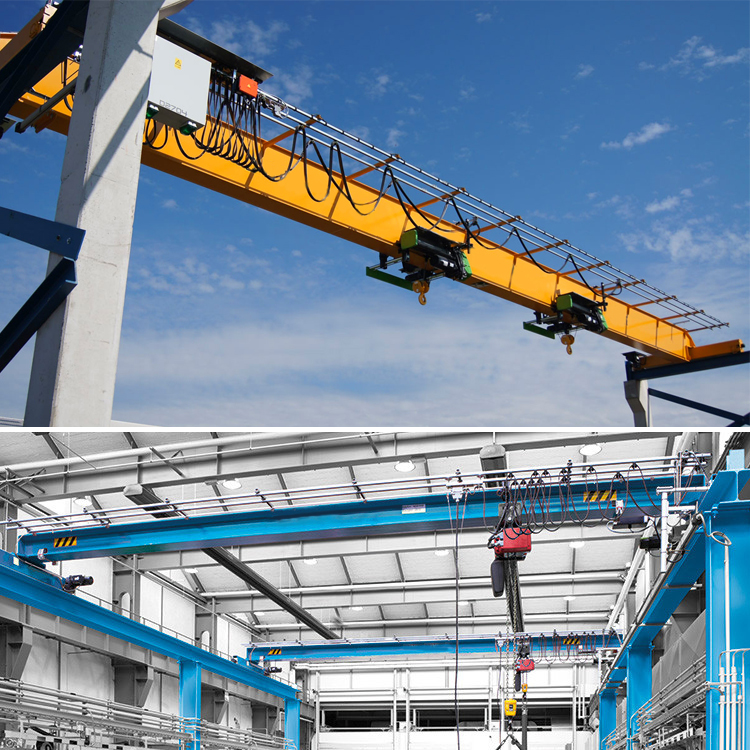

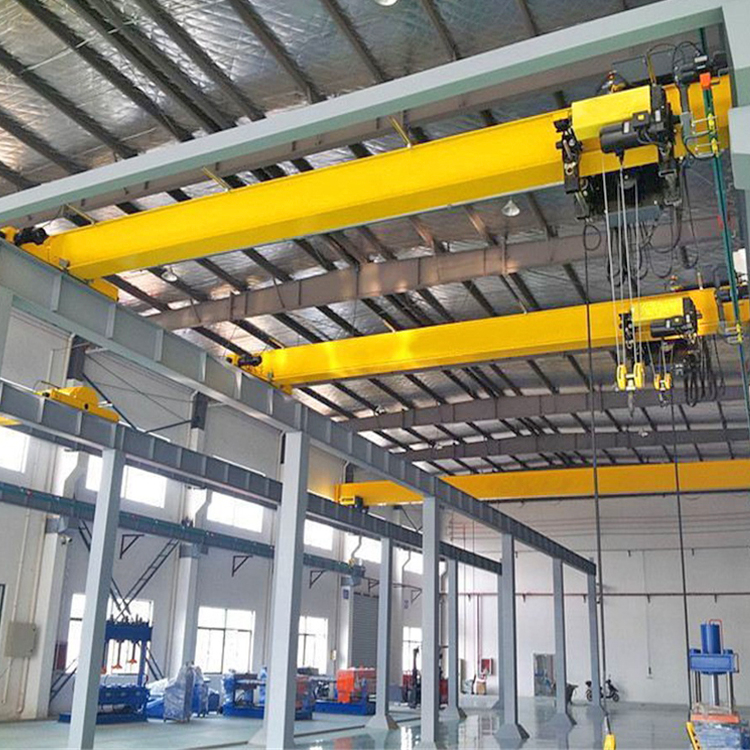

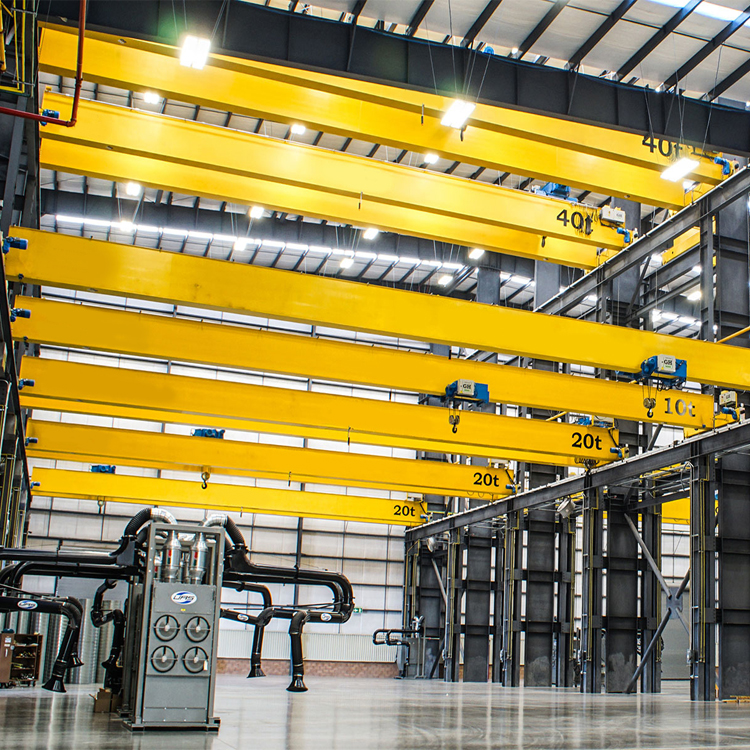

Industrial working Single girder overhead bridge crane



Product Description



European Standard Lifting Equipment Single Girder Bridge Crane is designed with high configuration, which is developed with advanced design technology referring to European FEM standard. Cranes are mainly made up by single main beams, end beams, hoist, electrical parts and others.

Compared to traditional single-beam cranes, European-style cranes have the most reasonable structure for steel structures, hoisting mechanisms and accessories. Large-scale use of high-strength materials, while reducing its total weight at the same time, but also improve the machine carrying capacity. Limit distance from hook to both sides is short but has large working arrange. With lower height above the rails, it makes full use of space of factory building.





Product Main Features

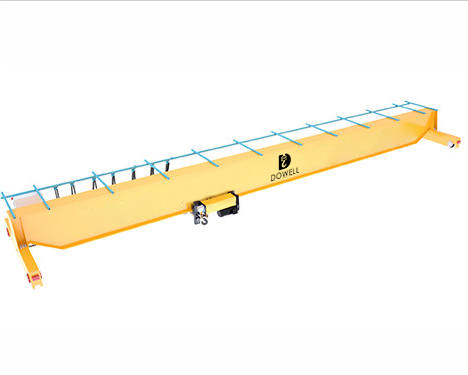

  • The box beam with computer optimization design is used as the main load beam.

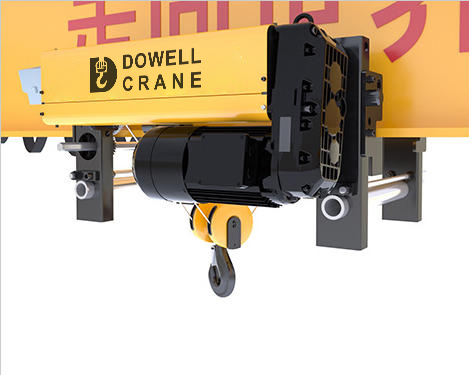

  • The trolley with the wire rope hoist has a small height, which makes the hook size more reasonable and has a wider working range.

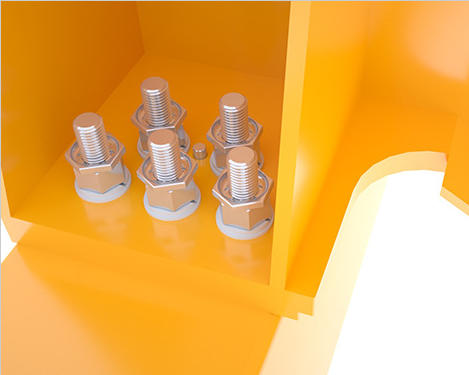

  • Unique wheel frame design, which is convenient for adjustment and installation and solid structure.
  • The motor has a high degree of protection and insulation, and is equipped with an optional overload protector.

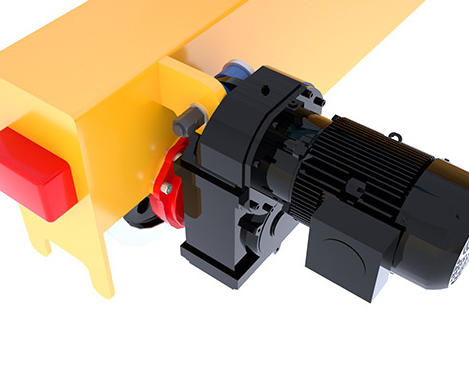

  • The gear box specially designed for the crane adopts helical gear and self-lubricating.
  • The flashlight door can be connected to the trolley, or it can move freely on the main beam separately, and can control the speed of the running speed according to the depth of the button.



Safety Devices



  • Infrared anti-collision.
  • Reasonable structure,strong bearing capacity.

  • Alarm indicator.

  • Reducer anti-fall, anti-lock.

  • Outdoor hoist with a rain cover.

  • Low noise, soft starting and stopping.



Parts Of Crane







Industrial working Single girder overhead bridge crane
overhead bridge crane

Packing & Delivery terms:


 Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.

▶ Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.

 Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.overhead bridge crane



FAQ

How can I get a precise crane offer?
To providing you a precise crane offer efficiently, please kindly provide details as following:

 Lifting capacity; material weight(unit as tonnage)

Lifting height; (unit as meter)

Crane span; the width of inquired crane(unit as meter)

Crane traveling length; when rail track/runway beam needed, traveling length shall be provided.

Working power; power source at site(unit as voltage, phase and Hz)

Can I get your crane products with customized/personalized service?

A.Yes, Dowellcrane promise customized/personalized products are available for our clients all the time. Just freely let us know your special demands about the products, our engineering team will work on that.

.What should I do if I’m not able to install the crane after buying?

A.Freely contact us. Our engineering team available for oversea service with crane installation, inspection and commissioning.

How long I can receive my crane products after my order placed?

A.Our production will be started once the payment confirmed. Below are timeline for whole procedure
Do you have any additional service on warranty?
A. Yes, we provide “DowellCrae” service about the warranty, the warranty period will extend to two (2) years, full set of spare partsand working tools will delivered with crane for future replacement and maintenance.
