Hot metal crane 75-300ton

load: 75-300t
span: 10.5-31.5m
max lifting height: 30m

Quantity:
  • YZ
  • Dowell
  • 75-300tons
  • 10.5~31.5m
  • 3-30m
  • 0.8-37m/min
  • 0-70m/min
  • A7
  • 380v 50hz or on your request
  • According to the customer request

Hot metal crane 75-300ton

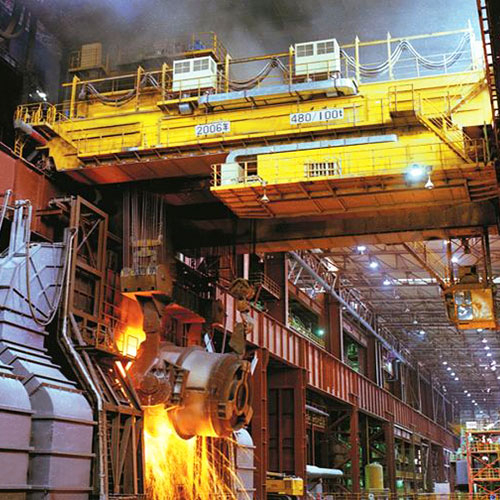

Working site picture of foundry crane



metal crane



Foundry crane is called hot metal crane, It’s one of the main equipment in the continuous casting technology of steelmaking. It is mainly used for pouring melted iron from additive bay of converter to converter; lifting molten steel from refining bay to refining furnace or lifting molten steel from molten steel bay to ladle turret of continuous casting machine.
The overall structure of foundry crane has the following form:two-girder and two-rail, four-girder and four-rail, and four girder and six-rail. ect. The form of two-girder and two-rail, and four-girder and four-rail are mainly used for middle and large-tonnage foundry crane; the form of four-girder and six-rail and two trolley is mainly used for extra large-tonnage foundry crane.
The foundry crane designed and manufactured by Dowellcrane has advanced technology and novel structure. The crane is safe, reliable. Long-lasting and economical, and easy to be maintained.


Function of fundry overhead crane:

The mechanisms can be speed governing.
The lifting appliances are rotation.
The spacing of portal hook is variable.
Limit and warning for over load.
Weighing and display of load, PLC control and failure detection, display record and printing system.
Prevent collision between cranes of same span.


The ralated products





未标题-1_01未标题-1_02
                                 QD                                                                      QE

未标题-1_03未标题-1_04

                                                   QZ                                                                                                       QC

Foundry overhead crane production line
metal crane

Packing & Delivery terms:


▶ Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.

▶ Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.

▶ Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.

metal crane



FAQ

How can I get a precise crane offer?
To providing you a precise crane offer efficiently, please kindly provide details as following:

 Lifting capacity; material weight(unit as tonnage)

Lifting height; (unit as meter)

Crane span; the width of inquired crane(unit as meter)

Crane traveling length; when rail track/runway beam needed, traveling length shall be provided.

Working power; power source at site(unit as voltage, phase and Hz)

Can I get your crane products with customized/personalized service?

A.Yes, Dowellcrane promise customized/personalized products are available for our clients all the time. Just freely let us know your special demands about the products, our engineering team will work on that.

.What should I do if I’m not able to install the crane after buying?

A.Freely contact us. Our engineering team available for oversea service with crane installation, inspection and commissioning.

How long I can receive my crane products after my order placed?

A.Our production will be started once the payment confirmed. Below are timeline for whole procedure
Do you have any additional service on warranty?
A. Yes, we provide “DowellCrae” service about the warranty, the warranty period will extend to two (2) years, full set of spare partsand working tools will delivered with crane for future replacement and maintenance.
