Guide rail chain lift hydraulic cargo lift

Rated Loading Capacity: 500kg-3000kg
Max lifting height: 14m
Table Size: 1800*1400(mm) or customized
Quantity:
  • SJD
  • Dowell
  • 500kg-3000kg
  • 14m
  • 4kw
  • 1700kg
  • articulated
  • 1800mm*1400mm
  • CE ISO9001
  • Hydraclic
  • 24 Months
  • Cargo Handling Auxiliary Equipment

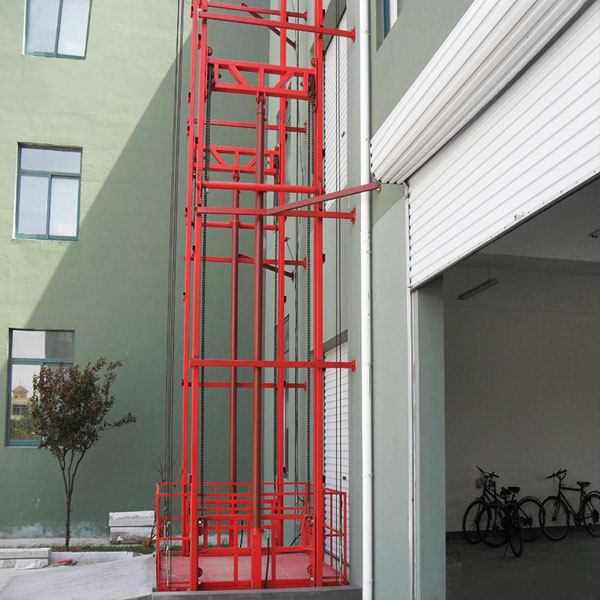

Guide rail chain lift hydraulic cargo lift

1-150602222R2920



hydraulic cargo lift elevator driven by the electric and hydraulic system ,lifting up and down along the guide rail.Equipped with single side or double sides hydraulic cylinder to keep the machinery work smooth and steady.
It is installed in the pit or the ground floor to convey the goods from one working lever to another.The control panels are avaliable at the designated floors and one the lift platforms,with up down stop button.

▶ chain lifting platform features lifting the goods through the different floors
▶ chain lifting platform----hydraulic driven and lift by chain
▶ special lifting chain and have long use life
▶ the close height is low so don not need pit installation.
▶ closed type structure ,safe and easy to clean


Guide rail chain lift hydraulic cargo lift

▶  with antiskid plate to prevent slipping,it is enough safe when working.

▶ equipped with the guardrail to guarantee the safety.

▶  hydraulic overload protective device to ensure that the equipment will stop work when the load beyond the rated load capacity.

▶ equipped with singe control solenoid valves to preventthe platform drop if power failure,You can open the manual deopped valve to lower the platform to the home position


Guide rail chain lift hydraulic cargo lift


Model Load Capacity  Vertical Stroke  Min. Height Platform Size  Power
SJD0.3-4.5 300 4500 150 1000*800 1.5
SJD0.5-4.5 500 4500 150 1500*1000 1.5
SJD1.0-4.5 1000 4500 150 1500*1500 2.2
SJD2.0-4.5 2000 4500 150 2000*1000 2.2
SJD3.0-4.5 3000 4500 160 2000*1200 3
SJD0.3-7.5 300 7500 150 1000*1000 1.5
SJD0.5-7.5 500 7500 150 1200*1200 1.5
SJD1.0-7.5 1000 7500 150 1800*1400 2.2
SJD2.0-7.5 2000 7500 150 2000*1500 2.2
SJD3.0-7.5 3000 7500 160 2000*1600 3
SJD1.0-10.5 1000 10500 150 1800*1400 2.2
SJD1.0-14 1000 14000 150 1800*1500 2.2




Packing & Delivery terms:
Guide-rail-delivery
