| Quantity: | |
|---|---|
Zh
Dowell
300t
10t
2years
No-load 0-20 km/h, full-load 0-5 km/h
DEUTZ 6110/180kw / 2700r/min
110-20-18 / 1150kPa/ 32 pcs
CNHTC 90+ZH300+Fast 16D
(855 /710)cm×285cm×120cm
32cm /135cm
4% / 3%

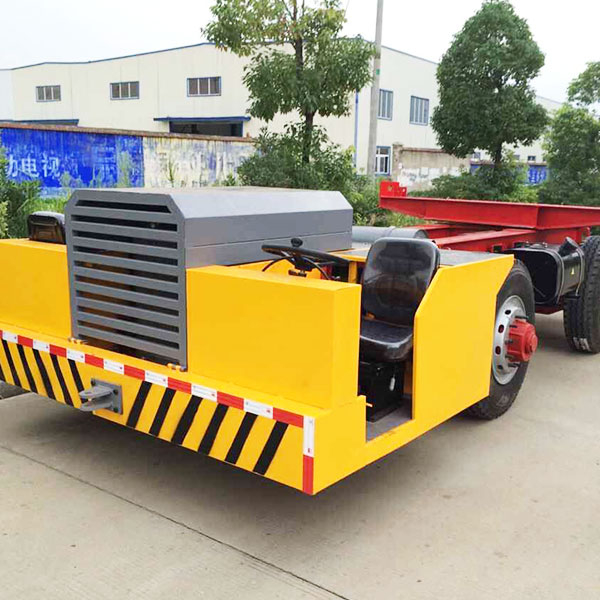

ZH300-3 transporting girder vehicle for China Railway Electrification Group
| ZH300-3 technical parameters | |
| Load capacity / self weight | 300T / 25.6T |
| Engine Type / Engine Power / Rated Speed | DEUTZ 6110/180kw / 2700r/min |
| Tyre type / Tyre Pressure / Tyre number | 110-20-18 / 1150kPa/ 32 pcs |
| Wheel center distance / number of axle /wheel base /number of brake axle | 220cm / 5×2=10 / 130cm +150cm+130cm+130cm / 3 |
| Gearbox specification | CNHTC 90+ZH300+Fast 16D |
| Chasis clearance / Load distance from ground | 32cm /135cm |
| Size (Driving vehicle/passive vehicle) | (855 /710)cm×285cm×120cm |
| running speed / steering angle / turning radius | 3.5m/min-20km / h /30° / 4.5m (single body) |
| Gradeability (longitudinal / horizontal) | 4% / 3% |
