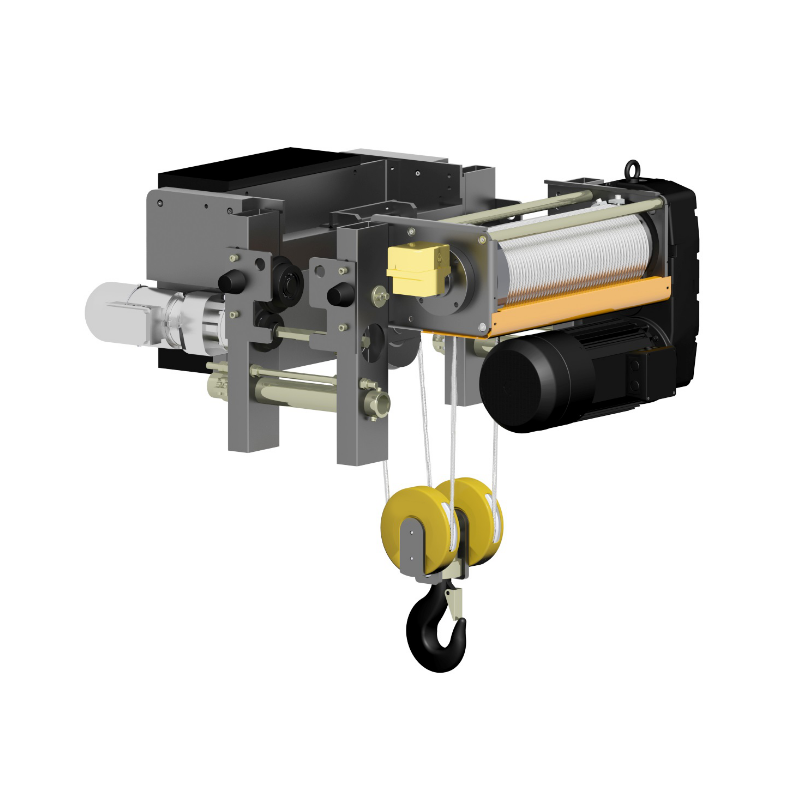

European style wire rope electric hoist

Rated Loading Capacity: 1-80T
Lifting height: 3-30m
Sling type: steel wire rope

Quantity:
  • DLH
  • Dowell
  • 1-80ton
  • DLH
  • 30m
  • 0.8-8m/min
  • Moveable
  • 20m/min
  • CCC CE ISO SGS
  • 380V 50Hz or on request
  • workshop, warehouse
  • 2years

Basic introduce:


European stype electric hoist is made of driving system(Motor), the transmission device (Reducer), brake, and ferch winding(such as hook, pulley, wire rope, drum, etc) compact assemble as one  of the lifting equipment.  Europen  electric hoist , ND type steel wire rope hoist according to Europe FEM standards, adopt the European standard FEM design development,

Electric hoist parts details:


hoist main-part

Application:


► extensively used in factories, workshops, warehouses and many other occasions to hoist materials directly.
 installed on the single or double girder overhead crane.
It can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes to hoist different items and so on.
It has so many appllication usages just for its advantages, such as: tight structure, convenient operation, light weight, wide common use and so on.


Features and Advantages:


1.concept advanced, attractive appearance, driving unitis Germany imported.
2.the whole machine with compact and reasonable structure, simple operation and convenient, safe and efficient operation.
3.meet the requirements of modern low noise, energy saving and environmental protection.



inquire                                                                                                                    MORE INFORMATION

European hoist
Type europe
Capacity(T) 2-80
Lifting Height(M) 6-18
Lifting Speed(M/Min) 0-6.3
Power supply AC-3Phase-220//230380/400/415/440V-50/60Hz
Working class M3-M6
Working temperature -20 ~ 40 ℃
Motor protection class IP54 IP55 IP65
