Construction Tower crane

All series qtz model construction building tower crane

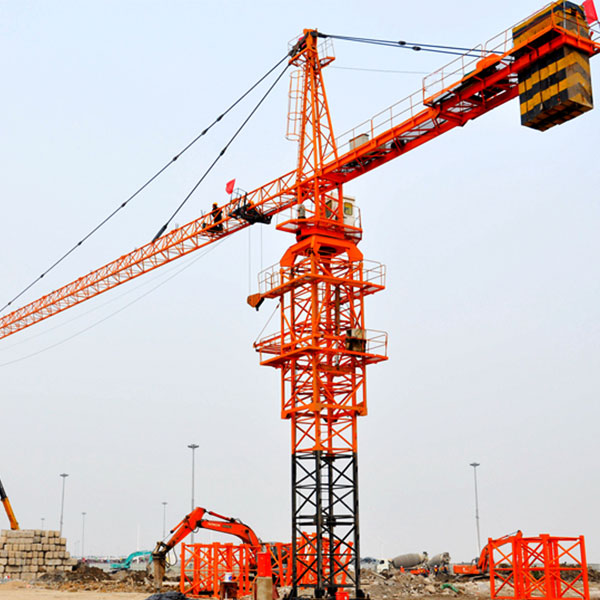

▶ Construction tower cranes are a modern form of balance crane that consist of the same basic parts. Fixed to the ground on a concrete slab (and sometimes attached to the sides of structures), tower cranes often give the best combination of height and lifting capacity and are used in the construction of tall buildings.
▶ The long horizontal jib is the part of the crane that carries the load. The counter-jib carries a counterweight, usually of concrete blocks, while the jib suspends the load to and from the center of the crane.

All series qtz model construction building tower crane

Components

▶ Mast: the main supporting tower of the crane. It is made of steel trussed sections that are connected together during installation.
▶ Slewing unit: the slewing unit sits at the top of the mast. This is the engine that enables the crane to rotate.
▶ Operating cabin: the operating cabin sits just above the slewing unit. It contains the operating controls.
▶ Jib: the jib, or operating arm, extends horizontally from the crane. A "luffing" jib is able to move up and down; a fixed jib has a rolling trolley that runs along the underside to move goods horizontally.
▶ Counter jib: holds counterweights, hoist motor, hoist drum and the electronics.
▶ Hoist unit: the hoist unit houses the hoist drum, hoist cable, gear box, gear shift, brake, and supporting components.
▶ Hook: the hook (or hooks) is used to connect the material to the crane. It hangs at the end of thick steel cables that run along the jib to the motor.
▶ Weights: Large concrete counterweights are mounted toward the rear of the mast, to compensate for the weight of the goods lifted.

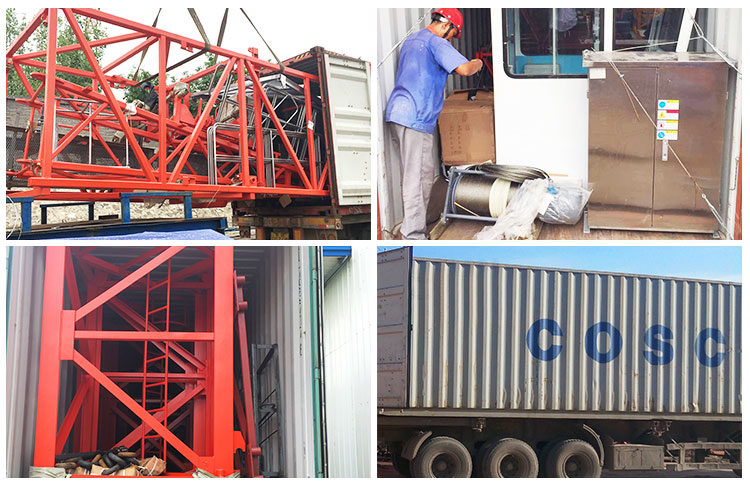

Packing & Delivery terms:

▶ electric parts and other parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.

▶ Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.

tower-crane-delievey

All series QTZ model 1-16t customized tower crane

► We have a professional sales team,can privede u a quick and professional reply.
► Exclusive engineer support at any time, so we can design within 24 hours.
► 2 year warranty for whole machines, providing all parts free of charge.
► Low charge for continue maintenance when warranty is expired.
► we can produce t he largest tonnage crane,just give us your demand.
► We can provide free training to end-users, don't worry about the installation.
►Products are sold to Europe, North America, South America, Middle East
