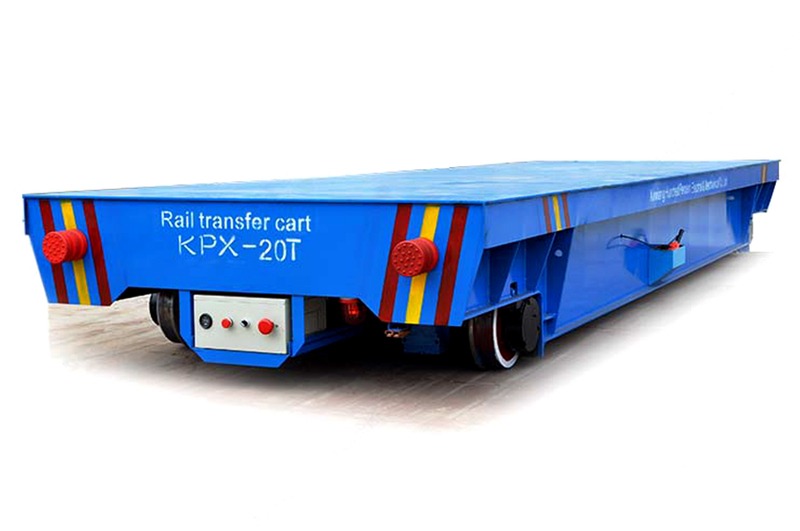

5-500t rail transfer cart for sale

Rated Loading Capacity: 5-500T
Platform size: customized
Power: battery or 380V voltage

Quantity:
  • KPD, KPJ, KPT, KPX
  • Dowell
  • 10-500ton
  • KPD, KPJ, KPT, KPX
  • customized
  • 6-30m/min
  • CE ISO SGS GOST
  • warehouse transportation goods
  • CCC CE ISO SGS
  • 380V 50Hz or on battery 24v
  • export standard plastic cloth
  • 2years
5-500t rail transfer cart for sale

145746631602120194217090

5-500t rail transfer cart for sale is designed for transporting heavy cargoes or equipment from one bay to another in factory. It can be used indoor or outdoor. The fields include metallurgy, foundry, new factory construction and shipbuilding and so on.  With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.

► The transfer cart machine is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc

► For horizontal load transfers of a wide range of material, hycrane has the heavy duty, high quality Transfer Cart solution you need.
► Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base.

► It's necessary equipment for lifting goods,raising laborefficiency,improving working conditions.

transfer cart Parameter table

Model    KPJ-2T    KPJ-10T    KPJ-20T   KPJ-30T KPJ-50T  KPJ-63T  KPJ-150T
Rated load (T) 2 10 20 30 50 63 150
Table size(mm) length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 500 550 600 650 700 800 1200
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Running speed (min) 0-25 0-20 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 0.8 1.5 2.5 4 5.5 7.5 15
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100

Packing & Delivery terms:


Professional load group for transfer cart, Small parts and electrical systerm are put in the high wooden box. And the whole tranfer cart will be fixed.

transfer-cart-delivery
