5-35ton partial hanging gantry crane

load: 5-35t
span: 10.5-30m
lifting height: 30m
  • MDG

  • Dowell

  • 1-35t

  • 10.5-0m

  • 5-20m

  • 24 Months

  • 0.2-20m/min

  • 0.2-20m/min

  • Wireless remote, Cabin, pendend


  • Outdoor

  • 0.8-8m/min

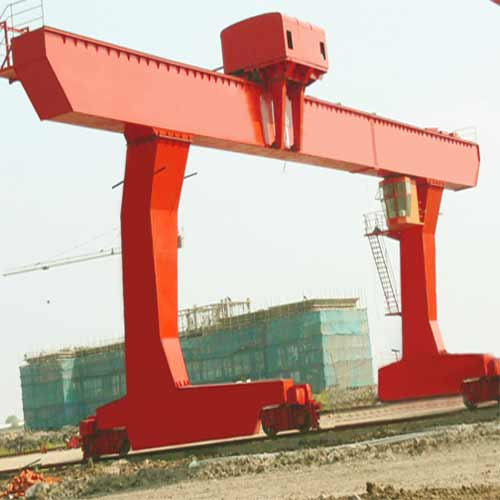

5-35ton partial hanging gantry crane


Partial hanging gantry crane

Partial hanging gantry crane is one kind of gantry crane, When gantry crane lift the long length and need the big angle rotation of objects, often adopt this type gantry crane. Such as steel market, steel structure welding site, making roll industrial and so on. What’s more, Our engineer group will design the new type gantry crane according to your requirement.

Feature of Partial Hanging Gantry Crane

 This type gantry crane has compact structure, easy installation, light weight, Its main beam is box type, The whole stiffness is less than double girder gantry crane. The max capacity is 35ton, Max span is 35m.

Application of Partial hanging gantry crane

This type gantry crane is used for warehouse, material yard, railway freight station and port terminal. It’s widely used in logistics transportation.

Partial hanging gantry crane main parts

Partial hanging gantry crane is made of main beam, lifting system, trolley, electrical equipment. The main beam adopt welding box structure. The driving system of this type gantry crane adopt independent drive. Control method: Cabin operator or remote control. The conductive form is divided into two kinds of cables and bus bar.

Adavantage of partial hanging gantry crane

This type partial hanging gantry crane is adopted international standards. The whole structure is novel, large working space, Operation vision is wide, flexible operation, comfortable working, High working efficiency.

The other series gantry crane:

gantry crane  gantry crane  gantry crane
BMH                                                     MH-Truss                                              MH
5-35ton partial hanging gantry crane

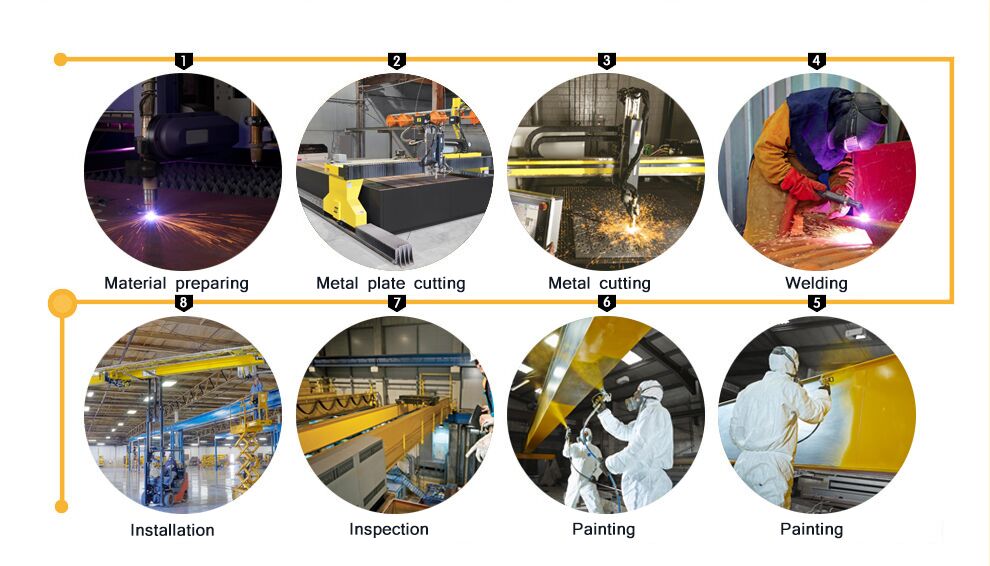

Dowellcrane products process is a system line, We forcus on every detail of gantry crane. From buy material to finished product. Evey step is controled by related department. Product safety and usage life is our core of service. We could acept every client's advice and learn the advanced foreign technology. Our own engineer group study more advanced ways to make the crane's funcation more perfect. For user could use this crane more safety and easier.
gantry crane

Packing & Delivery terms:

▶ Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.

▶ Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.

▶ Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.
