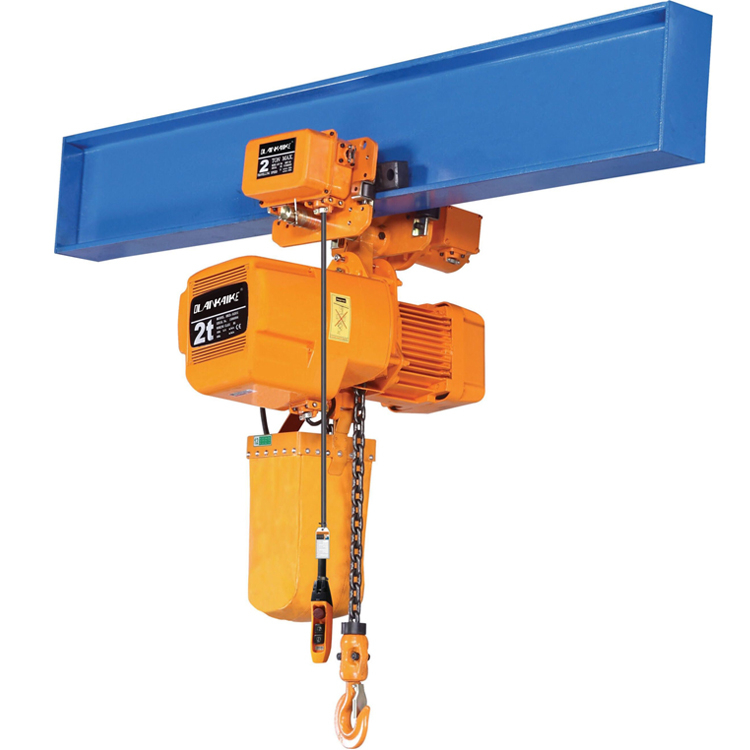

1-25t Electric Pulley Block Lifting Chain Hoist

Lift Speed: 1.1-7.2m/min
Lifting Height(M): 6-18
Maximum Lifting Weight: 1-35t
Working class: M3 ~ M7
Working temperature: -20 ~ 40 ℃
Warranty: 3 years
Quantity:
Inquire Add to Basket

  • HBBD

  • Dowell

  • 10m

  • Chain

  • 3-30m

  • 0.54~11.8

  • 380V 50Hz or on request

  • 2 Years

  • Pendent Control or Remote Control

未标题-2 Basic Description



环链葫芦-详情页_r4_c1_看图王


wkto 1-25t electric chain hoist crane china, Absolute reliability is one of the most important features for Pendent control WKTO electric chain hoist. To ensure the highest possible reliability levels in day to day operation, our crane systems are made to the most stringent quality standards.


未标题-2Application


1.extensively used in factories, workshops, warehouses and many other occasions to hoist materials directly.
2.installed on the straight or curve I-steel beam of Single-girder Cranes to lift goods.
3.It can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes to hoist different items and so on.
It has so many appllication usages just for its advantages, such as: tight structure, convenient operation, light weight, wide common use and so on.



未标题-2 Schematic drawing


中式葫芦MD





  Why choose us ? ? ?  333333

未标题-2Main features


1. Light weight, compact and solid body case.
2. Top and bottom hooks are fitted with safety latches as standard.
3. Super strong surface hardened chain, Strong chain bucket.
4. lower in noise.
5. stronger on overload capacity and higher in brake moment.
6. Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
7. Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.


未标题-2Chain hoist details




Common-tonnage-and-details


未标题-2Safety devices


1. Double Limit Switch,
2. Current overload protection function,
3. High quality polyurethane materials buffer.
4. Emergency stop system.


未标题-2Our Service



1. We have a professional sales team,can privede u a quick and professional reply.
2.  Exclusive engineer support at any time, so we can design within 24 hours.
3. 2 year warranty for whole machines, providing all parts free of charge.
4. Low charge for continue maintenance when warranty is expired.
5. c an produce the largest tonnage crane,just give us your demand.
6.  We can provide free training to end-users, don't worry about the installation.


未标题-2 Inquiry notice ! ! !



If you want to inquire about our chain hoist, please confirm with us the details as below. Then we will quote you a suitable price more quickly.

1.  Lift capacity?
2. Lift height?
3. Fixed type or Trolley type?
4. Power supply in your local?
5. Nearest port?
6. What kind of goods will this crane lift?

Inquiry notice未标题-2inquire


Chain Hoist

Type

Chain

Capacity(T)

0.3-35

Lifting Height(M)

3-30

Lifting Speed(M/Min)

0.54~11.8

Power supply

AC-3Phase-220//230380/400/415/440V-50/60Hz

Working class

M3 ~ M7

Working temperature

-20 ~ 40 ℃

Control voltage

DC-36 / 48V

Motor protection class

IP54 IP55 IP65
