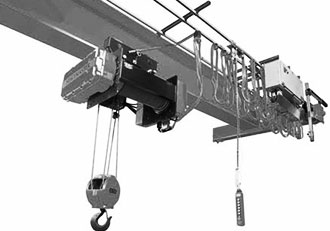

Single beam overhead crane
Single beam overhead crane

bridge-crane2Product description
The main beam of the single beam overhead crane adopts the combination section of the I-shaped steel or the steel type and the steel plate. Lifting trolleys are often assembled with chain hoists, electric hoists or hoists as components of the hoisting mechanism. It has a lifting capacity of 1-20t, a span of 7.5-22.5m, and a working level of A3-A5.
  • Scope of application: Overhead crane Widely used in workshops, warehouses, stockyards, etc. in machinery manufacturing workshops, metallurgical workshops, petroleum, petrochemical, port, railway, civil aviation, power station, paper, building materials, electronics and other industries.
  • Mode of operation: There are two forms of operation, ground and air. Ground operation has two operations: with line handle operation and remote controller handle; air operation refers to cab operation.



Common Parameter
Type 1-5t 10t 16t 20t
Lifting Machanism Model ofelectric hoist CD MD CD MD CD MD CD MD
Lifting speed(m/min) 8 8/0.8 7 7/0.7 3.5 3.5/0.35 3.5 3.5/0.35
Hoisting height(m) 6,9,12,18,24,30 9,12,18,24,30
Traveling speed(m/min) 20
Electric current 380V 50HZ Three-phase
   If you have different needs, we can provide customized services.





It is important !
Standardized production processes

工艺流程图
  Material preparing      Metal plate cutting          Metal cutting                   Welding                     Installation                  Inspection                       Painting






overhead--crane4

overhead--crane3Why is our customer return rate high?
1. Quality assurance, CE, ISO certificate;

2. The technology is mature, the production process is automated, and the production cycle is greatly shortened;
3, free of wearable parts, accessories have been in stock;
4. Provide worker training and engineers to guide the installation;
5. Exported to 108 countries to help customers solve various problems faced by the site in time;


bridge-overhead-crane bridge-overhead-crane2 bridge-overhead-crane1
